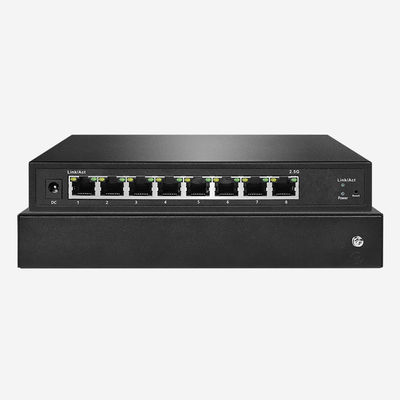

8 RJ45 2.5Gbps Gigabit Switch With 9k Jumbo Frame Support, Store And Forward Architecture

Place of Origin Shenzhen,China
Marka adı Sirivision
Sertifika CE, ROHS, FCC, UKCA
Model numarası SR-S25G2008
Min sipariş miktarı 20
Fiyat Negotiation
Ambalaj bilgileri Kutuda 1 adet, kutuda 1 adet Garanti Belgesi
Teslim süresi 5-8 iş günü
Ödeme koşulları L/C, T/T, Western Union, MoneyGram
Yetenek temini Ayda 50000 adet

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ağ medyası 10BASE-T: UTP Kategori 3, 4, 5 Kablo (Maks 100m), EIA/TIA-586 100-ohm STP (Maks 100m), 100BASE-TX: U Jumbo çerçeve 9 KB
Veri aktarım hızı 2,5 Gb/sn Çalışma sıcaklığı 0°C~45°C
Anahtar Mimarisi Mağaza ve ileri Bağlantı Noktası Sayısı 8 2.5G RJ45
Mesaj bırakın
Ürün Açıklaması

Product Description:

The 2.5 Gigabit Switch is a managed switch that is designed to provide high-speed, reliable connections to your network. It features a switch architecture that is store-and-forward, which means that packets are first stored and then forwarded to their destination. This ensures that data is delivered efficiently and accurately, with minimal latency or packet loss.



With a MAC address table of 4K, the 2.5 Gigabit Switch can accommodate a large number of devices on your network, making it ideal for use in environments that require high bandwidth and low latency. It also supports a range of network protocols, including IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3az, ensuring that it is compatible with a wide range of devices.



The 2.5 Gigabit Switch is a 2.5 Gigabit Ethernet switch, which means that it can deliver data transfer speeds of up to 2.5 Gbps. This makes it ideal for use in environments that require fast and reliable data transfer, such as video streaming, online gaming, and large file transfers. It is also designed to operate at temperatures ranging from 0°C to 45°C (32°F to 113°F), making it suitable for use in a wide range of environments.



In conclusion, the 2.5 Gigabit Switch is a high-performance network switch that delivers fast and reliable data transfer speeds. With its advanced features and compatibility with a wide range of devices, it is an ideal choice for small businesses, home offices, and residential homes. Whether you need to stream videos, play online games, or transfer large files, the 2.5 Gigabit Switch is the perfect solution for all your networking needs.



Features:

  • Product Name: 2.5 Gigabit Switch
  • LED Indicators: Power, Link/Act
  • Network Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
  • Jumbo Frame: 9KB
  • Switching Capacity: 60Gbps


Technical Parameters:

Parameter Value
Network Protocols IEEE 802.3, 802.3I, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3cb, IEEE 802.3az
Data Transfer Rate 10M/100M/1000M/2.5Gbps
2.5 Gigabit Ethernet Switch Yes
Cache 8Mbit
MAC Address Table 4K
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Network Media
  • 10Base-T: UTP category 3, 4, 5 cable (Max 100m)
  • 100Base-Tx: UTP category 5, 5e cable (Max 100m)
  • 1000Base-T: UTP category 5e, 6 cable (Max 100m)
  • 1G/2.5GBase-T:UTP category 5e, 6 cable (Max 100m)
Power Supply DC 12V/1.5A
Switching Capacity 40Gbps
Packet Forwarding Rate 29.76Mpps
Dimensions 190 X 116 X 29 Mm
Switch Architecture Store-and-Forward
Data Transfer Rate 2.5Gbps
Number of Ports 8 2.5gb RJ45



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)
• Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility

Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS



Applications:

The 2.5 Gigabit Switch is an ideal product for occasions and scenarios where high-speed data transfer is crucial, such as large file transfers, high-definition video streaming, and online gaming. The switch is capable of supporting jumbo frames up to 9KB, which improves network performance and reduces data transmission time. With IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3az network protocols, the switch ensures compatibility with a wide range of devices.



The store-and-forward switch architecture of this product ensures that data is transmitted efficiently and reliably. The MAC address table of the switch can store up to 4K addresses, making it ideal for larger network setups.



The 2.5 Gigabit Switch is an excellent choice for small to medium-sized businesses, educational institutions, and homes that require high-speed connectivity. Its compact design makes it easy to install in any network environment. With its reliable performance and advanced features, the 2.5 g switch, 2.5 gig switch, or 2.5 g ethernet switch is a product that you can trust.

8 RJ45 2.5Gbps Gigabit Switch With 9k Jumbo Frame Support, Store And Forward Architecture 0


FAQ:

Q: What is the brand name of this 2.5 Gigabit Switch?

A: The brand name of this switch is Sirivision.

Q: What is the place of origin for this 2.5 Gigabit Switch?

A: This switch is made in Shenzhen, China.

Q: How many ports does this 2.5 Gigabit Switch have?

A: This switch has 8 ports.

Q: What is the maximum data transfer rate for this 2.5 Gigabit Switch?

A: The maximum data transfer rate for this switch is 2.5 Gigabits per second.

Q: Is this 2.5 Gigabit Switch compatible with both Mac and PC?

A: Yes, this switch is compatible with both Mac and PC.
